Multiaxial Plastic Analysis#
try:
from veux.canvas.config import beamer
except:
pass
from xsection.library import from_aisc, aisc_data
import matplotlib.pyplot as plt
# plt.style.use("seaborn-v0_8-poster")
# import matplotlib.style
# print(matplotlib.style.available)
import numpy as np
Geometry and Material#
from math import sqrt
from xara.units.iks import inch, foot, ksi, kip
import xara
E = 29e3*ksi
v = 0.3
# Shear modulus
G = E/(2.0*(1.0+v))
# Yield stress
Fy = 60.0*ksi
# Define materials
material = xara.MultiaxialMaterial(
"NonlinearJ2", #"J2BeamThread", #
E=E,
nu=v,
Fy=Fy,
Hiso=0.0001*E,
Hkin=0.000*E,
# Fs=sig0,
# tol=1e-10,
)
Under multiaxial plasticity, the limit stress in pure shear is given by $\( F_{\mathrm{sh}} = \frac{1}{\sqrt3} F_y \)$
Fsh = sqrt(1/3) * Fy
# Create the shape
shape_name = "W8X40"
# shape_name = "W14x132"
shape = from_aisc(shape_name,
material=material,
mesh_type="T3",
mesher="gmsh",
fillet=False,
mesh_scale=1 #0.8
)
data = aisc_data(shape_name)
Z = data["Zx"] * inch**3
My = Fy*data["Sx"] * inch**3
A = data["A"] * inch**2
J = data["J"] * inch**4
Aweb = shape.d * shape.tw
Vy = Fsh * Aweb
Ty = 0.6 * Fy * J
print(f"{Vy = }")
print(f"{A/Aweb = }")
data
Vy = 102.88381796959129
A/Aweb = 3.9393939393939394
{'A': 11.7,
'Ix': 146.0,
'Iy': 49.1,
'J': 1.12,
'Cw': 726.0,
'Zx': 39.8,
'Zy': 18.5,
'Sx': 35.5,
'Sy': 12.2,
'rx': 3.53,
'ry': 2.04,
'd': 8.25,
'bf': 8.07,
'tw': 0.36,
'tf': 0.56,
'kdes': 0.954}
Cv1 = 1.0
Vn = 0.6 * Fy * Aweb * Cv1
import veux

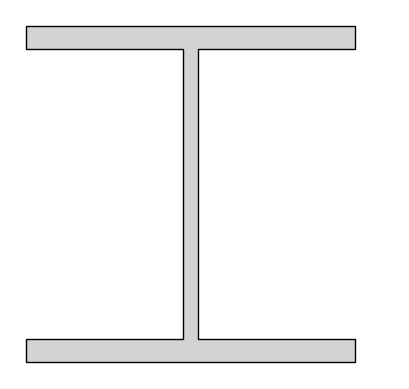

veux.draw_shape(shape)
# veux.render(shape.model)
Sections = {
"MultiaxialFiber": xara.Section("MultiaxialFiber", shape, mixed_type="UE"),
"NDFiber": xara.Section("NDFiber", shape, mixed_type="UE"),
# "UG": xara.Section("MultiaxialFiber", shape, mixed_type="UG"),
}
Interaction Analysis#
from xsection.analysis import PlasticContour, PlasticLimit
from xsection.analysis.interaction.shear import _get_fibers
#
# Setup the interaction analysis
#
colors = iter(["blue", "red", "green"])
lines = iter(["-", ".", "--"])
fig, ax = plt.subplots(constrained_layout=True, figsize=(6, 5))
ax.axvline(0, color="black", ls="-", lw=1)
ax.axhline(0, color="black", ls="-", lw=1)
# Run the analysis for each section
for label, section in Sections.items():
color = next(colors)
si = PlasticContour(section,
Fj=A*Fy, dof_j="N",
Fi=Z*Fy, dof_i="My",
overstress=1.1,
limit_tol=0.9,
limit_state="plastic",
limit_stress=Fy,
sweep_steps=60
)
ax.plot(*np.array(list(si.run())).T, next(lines), label=label, color=color)
ax.axis("equal")
ax.grid(True)
ax.legend()
ax.set_ylabel("$N_p$")
ax.set_xlabel("$M_p$");
0%| | 0/60 [00:00<?, ?it/s]
18%|█▊ | 11/60 [00:02<00:08, 5.85it/s]
Analysis failed at step 208 with flags -3 and -3
38%|███▊ | 23/60 [00:04<00:06, 5.89it/s]
Recovery successful
67%|██████▋ | 40/60 [00:07<00:03, 5.87it/s]
Recovery successful
87%|████████▋ | 52/60 [00:09<00:01, 5.82it/s]
Recovery successful
100%|██████████| 60/60 [00:11<00:00, 5.37it/s]
18%|█▊ | 11/60 [00:01<00:06, 7.65it/s]
Recovery successful
38%|███▊ | 23/60 [00:03<00:04, 8.09it/s]
Recovery successful
67%|██████▋ | 40/60 [00:05<00:02, 8.02it/s]
Recovery successful
87%|████████▋ | 52/60 [00:06<00:00, 8.21it/s]
Recovery successful
100%|██████████| 60/60 [00:07<00:00, 7.63it/s]

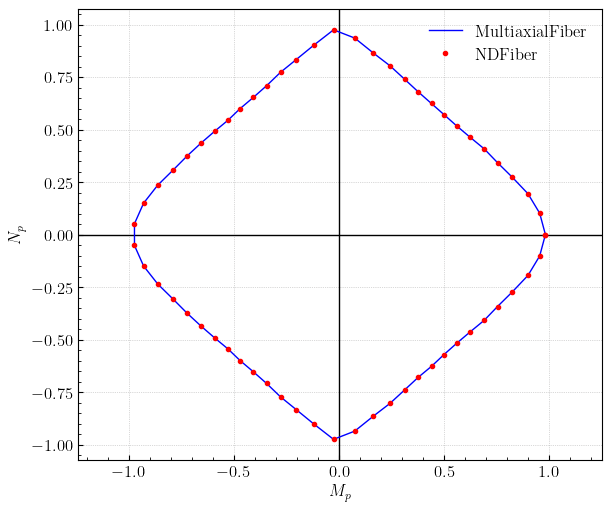

The moment-axial force interaction is identical between MultiaxialFiber and NDFiber section.
Moment-Shear#
#
# Setup the interaction analysis
#
fig, ax = plt.subplots(constrained_layout=True, figsize=(8, 5))
# ax.axvline(Fsh*A/Vy, color="black", ls="--", lw=1)
ax.axvline(0, color="black", ls="-", lw=1)
ax.axhline(0, color="black", ls="-", lw=1)
colors = iter(["blue", "red", "green"])
for label, section in Sections.items():
color = next(colors)
si = PlasticContour(section,
Fi=Vy, dof_i="Vz",
Fj=My, dof_j="My",
overstress=shape.area/Aweb,
limit_tol=0.99,
limit_state="plastic",
limit_stress=Fy)
ax.plot(*np.array(list(si.run())).T, label=label, color=color)
si = PlasticContour(section,
Fi=Vy, dof_i="Vz",
Fj=My, dof_j="My",
overstress=shape.area/Aweb,
steps=400,
limit_state="elastic",
limit_stress=Fy)
ax.plot(*np.array(list(si.run())).T, "--", color=color)
ax.grid(True)
ax.legend()
ax.set_xlabel("$V/V_{w}$")
ax.set_ylabel("$M/M_{y}$");
100%|██████████| 50/50 [00:05<00:00, 9.11it/s]
100%|██████████| 50/50 [00:05<00:00, 9.67it/s]
100%|██████████| 50/50 [00:03<00:00, 13.27it/s]
100%|██████████| 50/50 [00:04<00:00, 12.15it/s]

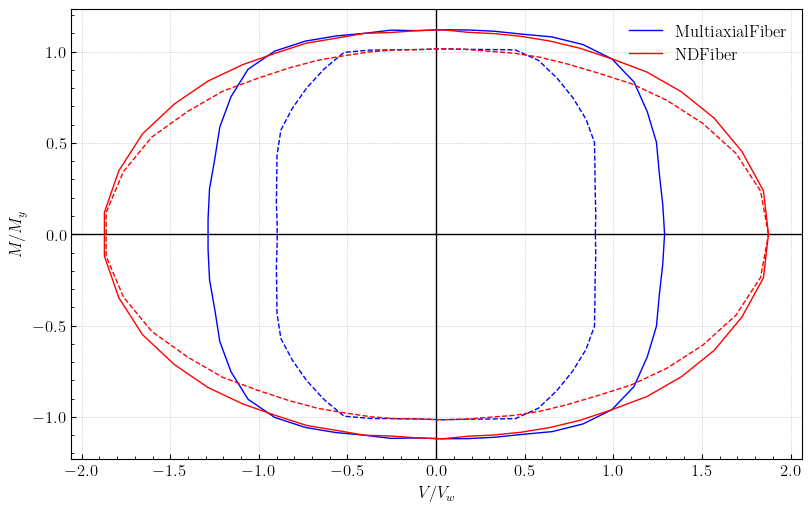

When
NDFiberis loaded in pure shear, all fibers go plastic at the same time.MultiaxialFiberexhibits a gradual transition to the plastic shearIn the state of ultimate plastic shear,
NDFiberproduces a uniform stress field \(\boldsymbol{\sigma} = (0, 0, F_{\mathrm{sh}})\), but the resultant is not \(\int F_{\mathrm{sh}}\, dA\)
# fig, ax = plt.subplots(constrained_layout=True, figsize=(10, 5))
# section = xara.Section("MultiaxialFiber", shape)
# si = PlasticContour(section, Fi=Vy, Fj=Z*sig0,
# limit_stress=sig0, Fo=Ty, dof_o="T")
# ax.plot(*np.array(list(si.run())).T);
# section = xara.Section("NDFiber", shape)
# si = PlasticContour(section, Fi=Vy, Fj=Z*sig0,
# limit_stress=sig0, Fo=Ty, dof_o="T")
# ax.plot(*np.array(list(si.run())).T);
# ax.set_xlabel("$V_p$")
# ax.set_ylabel("$M_p$");
# fig, ax = plt.subplots(constrained_layout=True, figsize=(10, 5))
# section = xara.Section("MultiaxialFiber", shape)
# si = PlasticContour(section, Fi=Vy, Fj=Z*sig0,
# limit_state="elastic",
# limit_stress=sig0)
# ax.plot(*np.array(list(si.run())).T);
# section = xara.Section("NDFiber", shape)
# si = PlasticContour(section, Fi=Vy, Fj=Z*sig0,
# limit_state="elastic",
# limit_stress=sig0)
# ax.plot(*np.array(list(si.run())).T);
Limits#

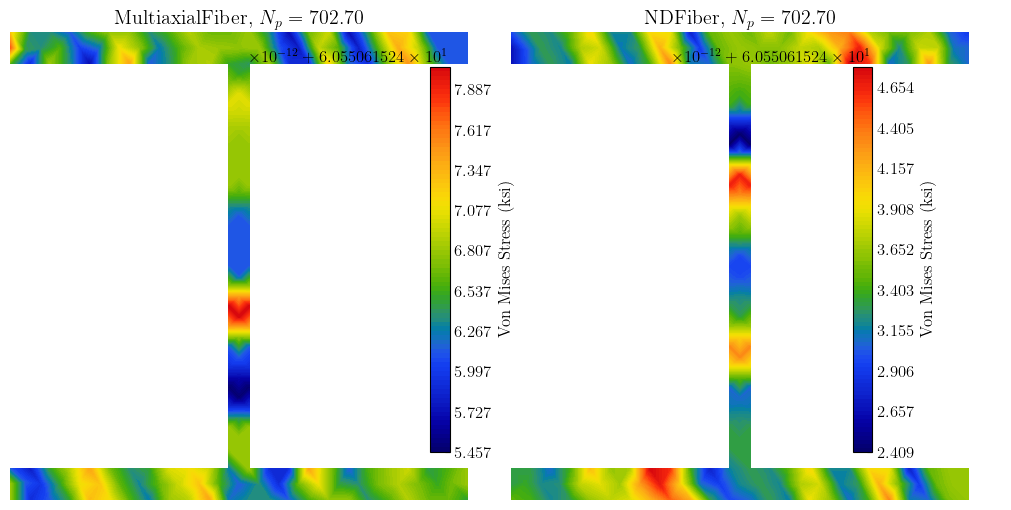

from xara.post import FiberStress, NodalAverage
fig, ax = plt.subplots(1,2, constrained_layout=True, figsize=(10, 5))
i = 0
for label, section in Sections.items():
pl = PlasticLimit(section, [A*Fy,0,0, 0, 0, 0], Fy, overstress=1.1)
Np = 0
for j, f in _get_fibers(pl.model, 1).items():
Np += pl.model.eleResponse(1, "section", "fiber", j, "stress")[0]*f["area"]
print(Np/(A*Fy))
print(pl.resultant[0]/(A*Fy))
ax[i].set_title(label + f", $N_p = {-pl.reaction[0]:.2f}$")
artist = veux.ShapeArtist(shape,
ax=ax[i])
stress_field = FiberStress(pl.model, shape, section=1, stress="svm", element=1)
artist.draw_surfaces(
field=stress_field,
cbar_label="Von Mises Stress (ksi)",
)
i += 1
1.0010000345018233
1.001000000000051
1.0010000345017744
1.0010000000000001

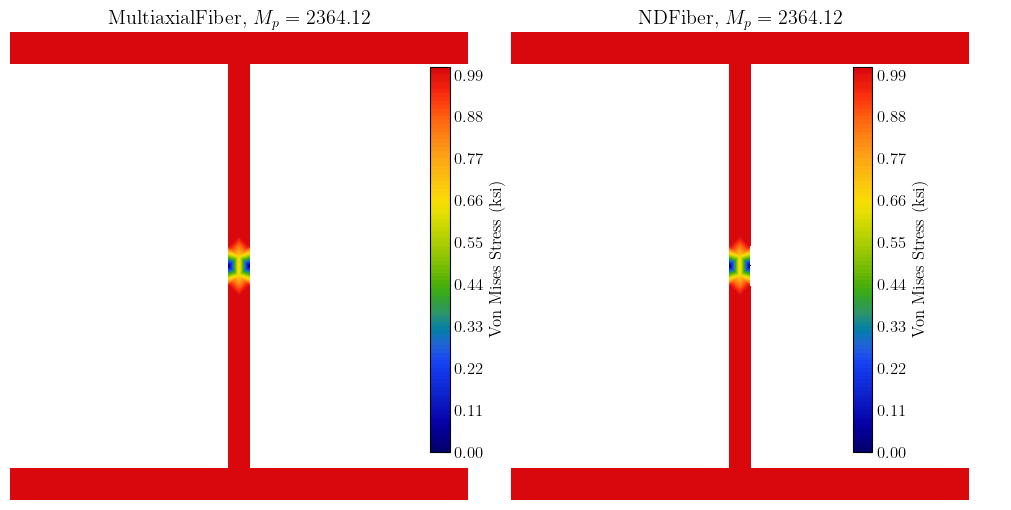

Moment#
from xara.post import FiberStress, NodalAverage
fig, ax = plt.subplots(1,2, constrained_layout=True, figsize=(10, 5))
i = 0
for label, section in Sections.items():
pl = PlasticLimit(section, [0,0,0, 0, Z*Fy, 0], Fy, overstress=1.1)
Mp = 0
for j, f in _get_fibers(pl.model, 1).items():
z = f.get("coord", f.get("location",[None,f.get("z",None)]))[1]
Mp += pl.model.eleResponse(1, "section", "fiber", j, "stress")[0]*f["area"]*z
print(Mp/(Z*Fy))
print(pl.reaction[4]/(Z*Fy))
ax[i].set_title(label + f", $M_p = {-pl.reaction[4]:.2f}$")
if i > 1:
continue
artist = veux.ShapeArtist(shape,
ax=ax[i])
stress_field = FiberStress(pl.model, shape, section=1, stress="svm", element=1, scale=1/Fy)
artist.draw_surfaces(
field=stress_field,
cbar_label="Von Mises Stress (ksi)",
)
i += 1
0.9900001264506103
-0.9900000000000011
0.9900001264506092
-0.9899999999999998

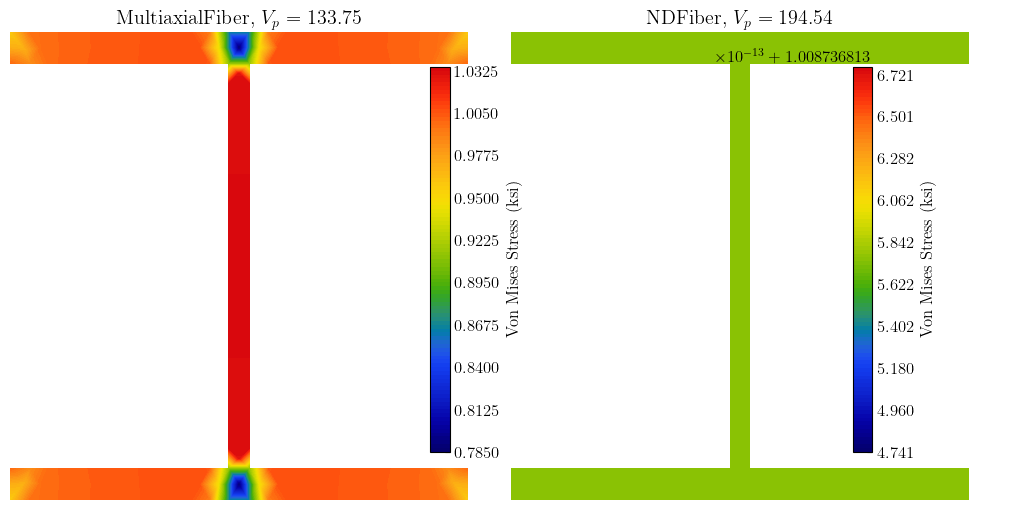

Shear#
fig, ax = plt.subplots(1,2, constrained_layout=True, figsize=(10, 5))
print("Vn = ", Vn)
print("Vp = ", Fsh*A)
# section = xara.Section("NDFiber", shape, mixed_type="UE")
i = 0
for label, section in Sections.items():
pl = PlasticLimit(section, [0, 0, Vy, 0, 0, 0], Fy, overstress=A/Aweb)
Vp = 0
for j, f in _get_fibers(pl.model, 1).items():
Vp += pl.model.eleResponse(1, "section", "fiber", j, "stress")[2]*f["area"]
print("V = ", Vp)
print("R = ", -pl.reaction[2])
if i > 1:
continue
ax[i].set_title(label + f", $V_p = {-pl.reaction[2]:.2f}$")
artist = veux.ShapeArtist(shape,
ax=ax[i])
stress_field = FiberStress(pl.model, shape, section=1, stress="svm", element=1, scale=1/Fy)
artist.draw_surfaces(
field=stress_field,
cbar_label="Von Mises Stress (ksi)",
)
i += 1
Vn = 106.91999999999999
Vp = 405.29988897111724
V = 133.748970098561
R = 133.74896336046854
V = 405.5282724721839
R = 194.5439467061315

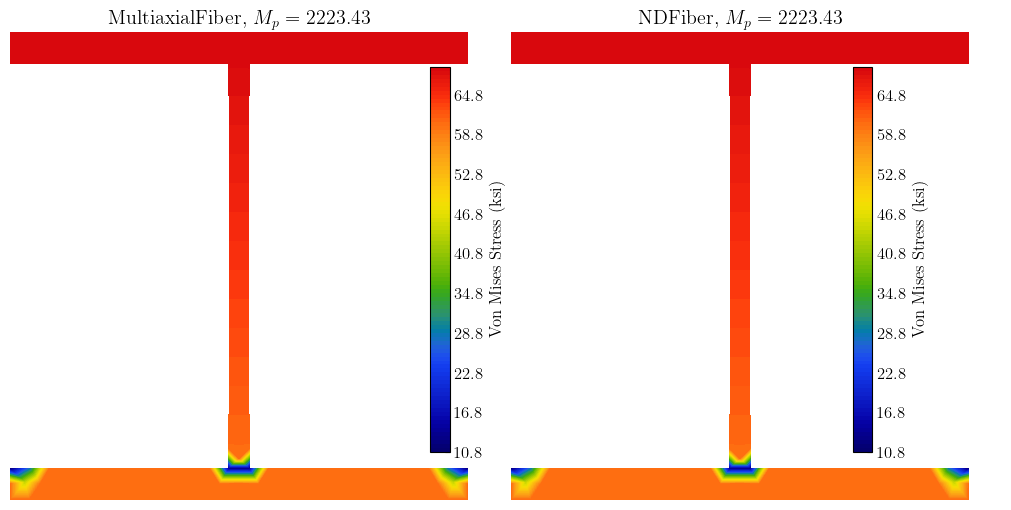

fig, ax = plt.subplots(1,2, constrained_layout=True, figsize=(10, 5))
a = np.pi/10
i = 0
for label, section in Sections.items():
pl = PlasticLimit(section, [A*Fy*np.sin(a),0,0,
0, Z*Fy*np.cos(a), 0],
Fy, overstress=1.1)
Mp = 0
for j, f in _get_fibers(pl.model, 1).items():
z = f.get("coord", f.get("location",[None,f.get("z",None)]))[1]
Mp += pl.model.eleResponse(1, "section", "fiber", j, "stress")[0]*f["area"]*z
print(Mp/(Z*Fy))
print(pl.reaction[4]/(Z*Fy))
if i > 1:
continue
ax[i].set_title(label + f", $M_p = {-pl.reaction[4]:.2f}$")
artist = veux.ShapeArtist(shape,
ax=ax[i])
stress_field = FiberStress(pl.model, shape, section=1, stress="svm", element=1)
artist.draw_surfaces(
field=stress_field,
cbar_label="Von Mises Stress (ksi)",
)
i += 1
0.9310844511541564
-0.9310843294529599
0.9310844511541473
-0.9310843294529504
