Fibers: Manual Layouts I

This example demonstrates the generation of fibers for use with OpenSees. Begin by creating a standard AISC shape:

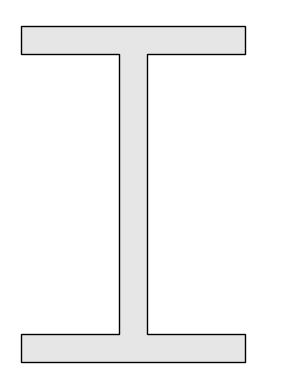

WideFlange

import veux
from xsection.library import WideFlange

shape = WideFlange(d=12, bf=8, t=1)

veux.draw_shape(shape)

import xara
section = xara.FrameSection("MultiaxialFiber", shape, fibers={"d": 10, "t": 1, "b": 5})

veux.draw_shape(section)

fibers={"d": 10, "tf": 2, "tw": 1, "b": 5}

section = xara.FrameSection("MultiaxialFiber", shape, fibers=fibers)

veux.draw_shape(section)

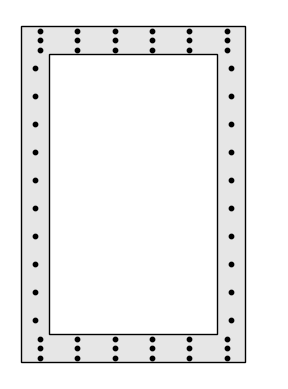

HollowRectangle

from xsection.library import HollowRectangle

shape = HollowRectangle(d=12, b=8, t=1)

fibers = {"d": 10, "tf": 3, "tw": 1, "b": 6}
section = xara.Section("MultiaxialFiber", shape, fibers=fibers)
veux.draw_shape(section)

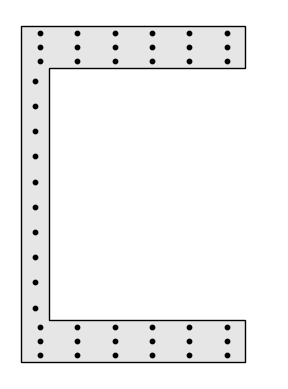

Channel

from xsection.library import Channel
shape = Channel(d=12, b=8, tf=1.5, tw=1)

fibers = {"d": 10, "tf": 3, "tw": 1, "b": 6}

section = xara.FrameSection("UniaxialFiber", shape, fibers=fibers)
veux.draw_shape(section)
